The free BACnet/IP Device Server Simulator is a Windows PC based BACnet software tool which can be used in the development/testing of BACnet/IP based client software system like BMS/EMS, BACnet automation server GUI app or even for evaluating your BACnet network performance.

This tool can be downloaded from this LINK which is password protected. So please go ahead and fill the form below to let us know you are interested so that we can then mail you the username/password details.

BACnet/IP Device Server Simulator

FEATURES

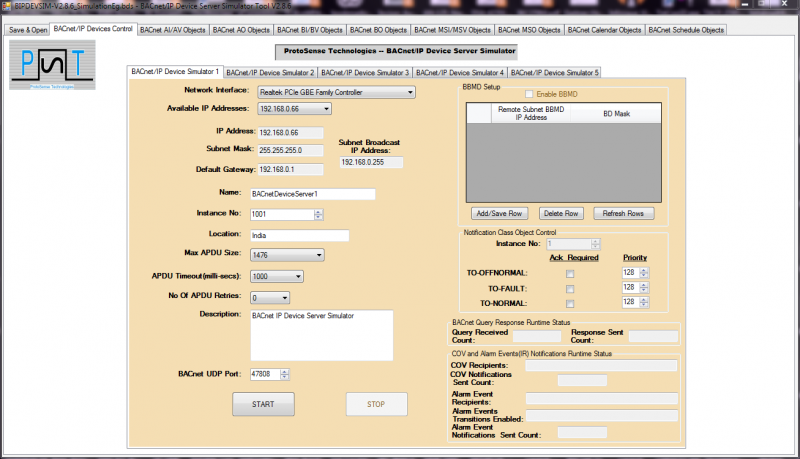

1. A Windows application that can simulate a BACnet/IP Device Server on any PC with an Ethernet network adapter and connected to an Ethernet LAN. BACnet/IP Device Server can also be run on a Wi-Fi network interface.

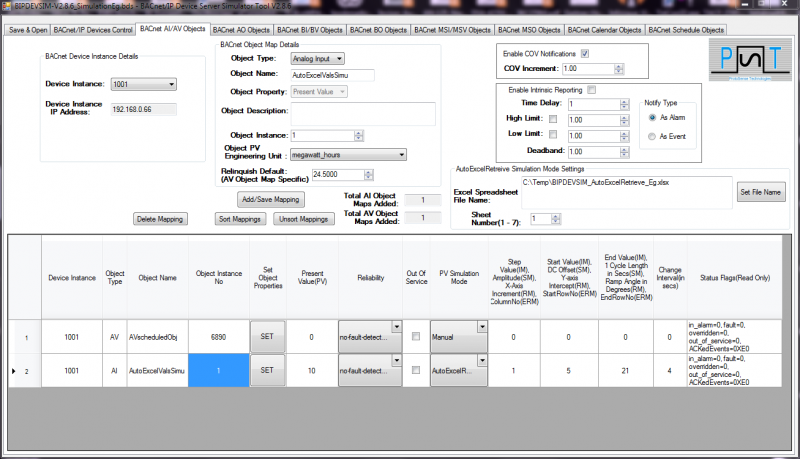

2. Provides for creating and simulating standard object types like AI, AV, AO, BI, BV, BO, MSI, MSV, MSO, Calendar, Schedule and Notification Class.
3. Supports all standard BACnet Read/Write services including those required for COV and Intrinsic Reporting features support.
4. Bi-Directional Segmentation feature support.
5. Can act as a BBMD on the IP Subnet to which the Windows PC is connected to.
6. Confirmed and Unconfirmed COV notifications.

7. Intrinsic Reporting feature for Alarm/Event generation.
8. Manual and Automatic simulation features for simulating an actual automation system like conditions.

BACnet/IP Device Server Simulator - Extended Version

Please do ask for this if the basic version(above) satisfied your requirements and then we can supply you this extended version at a nominal cost.

FEATURES

The features in this version include those that of the basic version and additionally the below features:

1. Capability to create upto 5 BACnet/IP Device Servers on the same Windows Desktop/Laptop PC.
2. Support for creating and simulating up to a total of 500 BACnet object instances.
3. Ability to save the created objects and simulation settings into a file. Also, to open a previously saved file and load the objects and settings into the tool for easy and fast simulation deployment.

More Information

We are an embedded systems company developing products for the building automation and process control industries. Our products would be cost competitive with comprehensive feature set.
